AFITER 3D - Topsoil retention

Use

The AFITER® 3D range is particularly well suited to :

road infrastructure,
capping waste storage facilities (ISD)

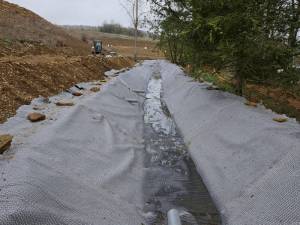

hydraulic structures

It ensures that they blend in better with the landscape, by making it easier to plant them. This solution retains moisture, which encourages vegetation on slopes and embankments.

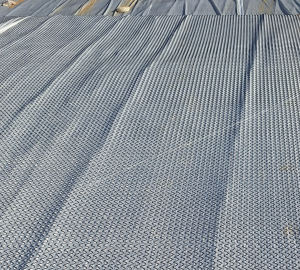

Installing this soil-retaining solution is extremely quick and easy, as it unrolls just like a standard geotextile.

The product does not need to be anchored or hooked into the slope. It only needs to be fixed at the top, and its flexibility means it can adapt perfectly to the slope.

MULTI-PURPOSES

• Soil retention,
• Erosion control,
• Revegetation,
• Puncture protection,
• Moisture retention,
• Séparation/filtration,
• Drainage (for the DRAINTUBE® version).

THE AFITER® 3D RANGE

AFITER® 3D G

combines a
reinforcement
geogrid with an antipuncture
nonwoven
geotextile. This is the
classic version of the
range.

AFITER® 3D T

The anti-puncture
geotextile is replaced by a
finer separation/filtration
geotextile, allowing roots
to pass through for deeper
root anchorage in the
embankment, ideal for
shrub-like vegetation.

AFITER® 3D DRAIN

In this variant drainage
function is added
to AFITER 3D® G is
combined with the
DRAINTUBE® drainage
geocomposite.

Benefits

Multifunctional global solution.
Reduced footprint by increasing slopes.
High stability over time for greater durability of structures.
Easier planting of structures to blend in with the landscape and a reduced carbon footprint.
Quick and easy to install.
Fights erosion and initial climatic impacts.
Does not crush under the weight of soil.
Large range of traction resistance, up to 450 kN/m.
Large width (3.90 m) / roll lengths and layouts available on request.

Features

Drainage

Earth retention

Filtration

Reinforcement

Separation

Characteristics

Polyethylene geocomposite reinforced with high-tenacity polyester yarns and rigid polypropylene strips
Width : 3 m
Length : 100 m
Traction resistance :up to 400 kN/m
